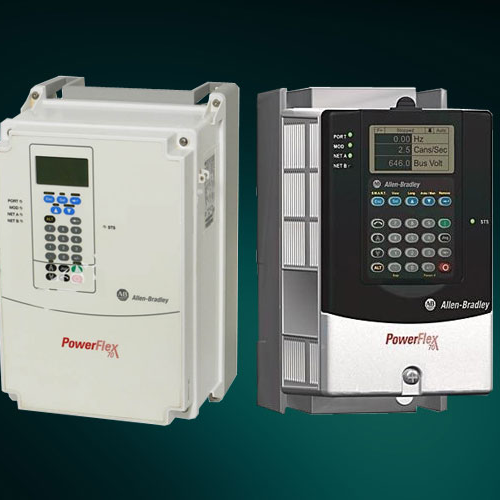

PowerFlex® 70 AC Drives are compact packages of power, control, and operator interface designed to meet demands for space, simplicity, and reliability. These drives are easy to integrate and configure. Our packaged drives provide additional control, power, and enclosure options in standardized designs. The PowerFlex 70 Fan and Pump packaged drive is a cost-effective solution for speed control in variable torque fan and pump applications.

Power ratings :

• 200…240V: 0.37…18.5 kW / 0.5…25 Hp / 2.2…70 A

• 380…480V: 0.37…37 kW / 0.5…50 Hp / 1.1…72 A

• 500…600V: 0.5…50 Hp / 0.9…52 A

• IP20 NEMA/UL Type 1, Flange Mount, IP54 NEMA/UL Type 12, IP66 NEMA/UL Type 4X/12 for indoor use

• Zero Stackingâ„¢ Drives allowable with no reduction of ambient temperature rating (50 °C for IP20, NEMA/UL Type 1 and Flange Mount; 400C for IP66, NEMA/UL Type 4X/12)

• Wall or machine mount

• V/Hz control, sensorless vector control, Vector Control with FORCEâ„¢ Technology

• Common Industrial Protocol (CIPâ„¢) including DeviceNetâ„¢, ControlNetâ„¢, and EtherNet/IPâ„¢

• Speed and torque control with and without encoder feedback
